Number Systems - Geometrical Method

Suggested Videos
Part 5 - Number Systems - Representing Irrational Numbers on number line - Text - Slides
Part 6 - Number Systems - Successive Magnification Method - Text - Slides
Part 7 - Operations on real numbers - Text - Slides



Steps to represent √x on the number line:

1. Draw a line and mark point A.
2. Mark a point B on the line such that AB=x units
3. From B at unit distance mark point C.
4. Find mid-point of AC and mark it as O.
5. Draw a semi- circle with radius O and radius OC.
6. Draw a line perpendicular to AC at point B, passing through and intersecting semi-circle at D. Length BD  is equal to  √x.
7. Now BD as radius and B as centre draw an arc it cuts number line at a point say E, distance from B to E represents √x.

Examples:

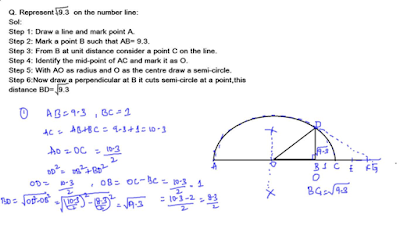

Represent √9.3 on the number line [NCERT]
Represent √10.25 on the number line
